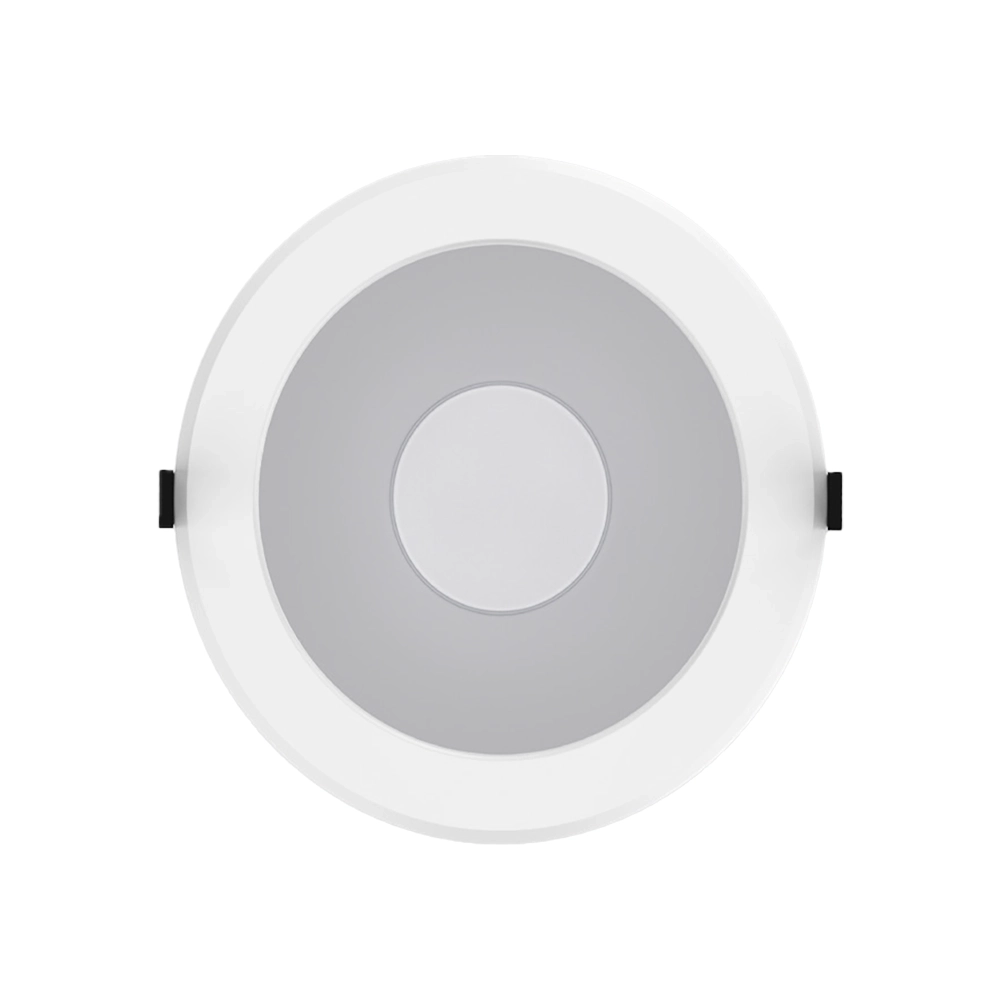

L-Trim SOL XLE2 Select

LED High Output Recessed Downlight with Selectable CCT & Wattage

The L-Trim SOL XLE2 Select (LTR5) is an all-in-one LED downlight solution that delivers both value and performance for projects needing high lumen output. It comes standard with selectable wattage and CCT allowing for in-the-field customization. The L-Trim SOL XLE2 Select is an ideal LED lighting solution for auto dealerships, restaurants, retail, healthcare, educational facilities, and other commercial applications.

Product Specs

Color Temperatures:

3000K,4000K, 5000K, Selectable CCT

Max Lumens:





20W, 30W, 40W, 50W, 60W

Additional Options:

Battery Backup, Emergency Driver


Wall Control Dimmer, Rough-In Kit


Product Details

Key Features

  • Versatile LED downlight engineered projects needing high lumen output.

  • Selectable switch for wattage and CCT; minimum 90 CRI.

  • Diffused lens helps to provide comfortable, uniform light distribution.

  • Suitable for use in outdoor wet locations.


  • Die-cast aluminum and polycarbonate housing offers a deep baffle configuration.

  • Includes integrated singular trim ring in a white matte finish.

  • Includes pre-installed flex conduit lead.

  • Frosted plastic lens reduces glare.


  • 120-277VAC 50/60Hz input.

  • 1-10V dimming standard.

  • Power factor: >0.90 and THD <20%.

  • Operating temperature: -20°C to 40°C (-4°F to 104°F).


  • Industry-leading LEDs with selectable CCT via switch in the field: 3000K, 4000K, and 5000K CCT (minimum 90 CRI).

  • Two interchangeable beam angles: 50°/70° for 6 in. and 40°/60° for 8 in.

  • Lumen Maintenance: ≥ 50,000 hours (L70).


  • Mounts directly recessed into the ceiling with integrated spring action clips.


  • Backed by US LED’s industry-leading Ten-Year Warranty.

Stocked Configurations

LTR5 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
