LED Lighting Controls for Commercial and Industrial Projects

Click to learn more about our manufacturer partners who provide controls for US LED lighting solutions.

Even with today’s efficiencies, lighting can still be a significant operating expense for commercial and industrial buildings. However, it’s also a critical factor for ambiance, establishing visual comfort, and maintaining the productivity of the occupants. In addition, implementing lighting controls through various strategies allows facility managers to tailor the lighting to meet the needs of specific spaces. Learn more about how today’s energy-efficient LED lighting can enhance your building’s performance and generate considerable benefits for your business when paired with networked lighting controls.



Introduction To Lighting Controls

Lighting controls are devices and complete systems that create operational flexibility into lighting to support energy management and occupant needs. These devices and systems accept an input, decide how to reduce the lighting, and control the load as an output. These inputs may be manual from human intervention or automatically based on time, occupancy, available light levels, or an energy management system. The results are typically switching, dimming, or control data. The unique combinations of inputs and outputs give us various lighting control strategies to deliver significant energy cost savings.

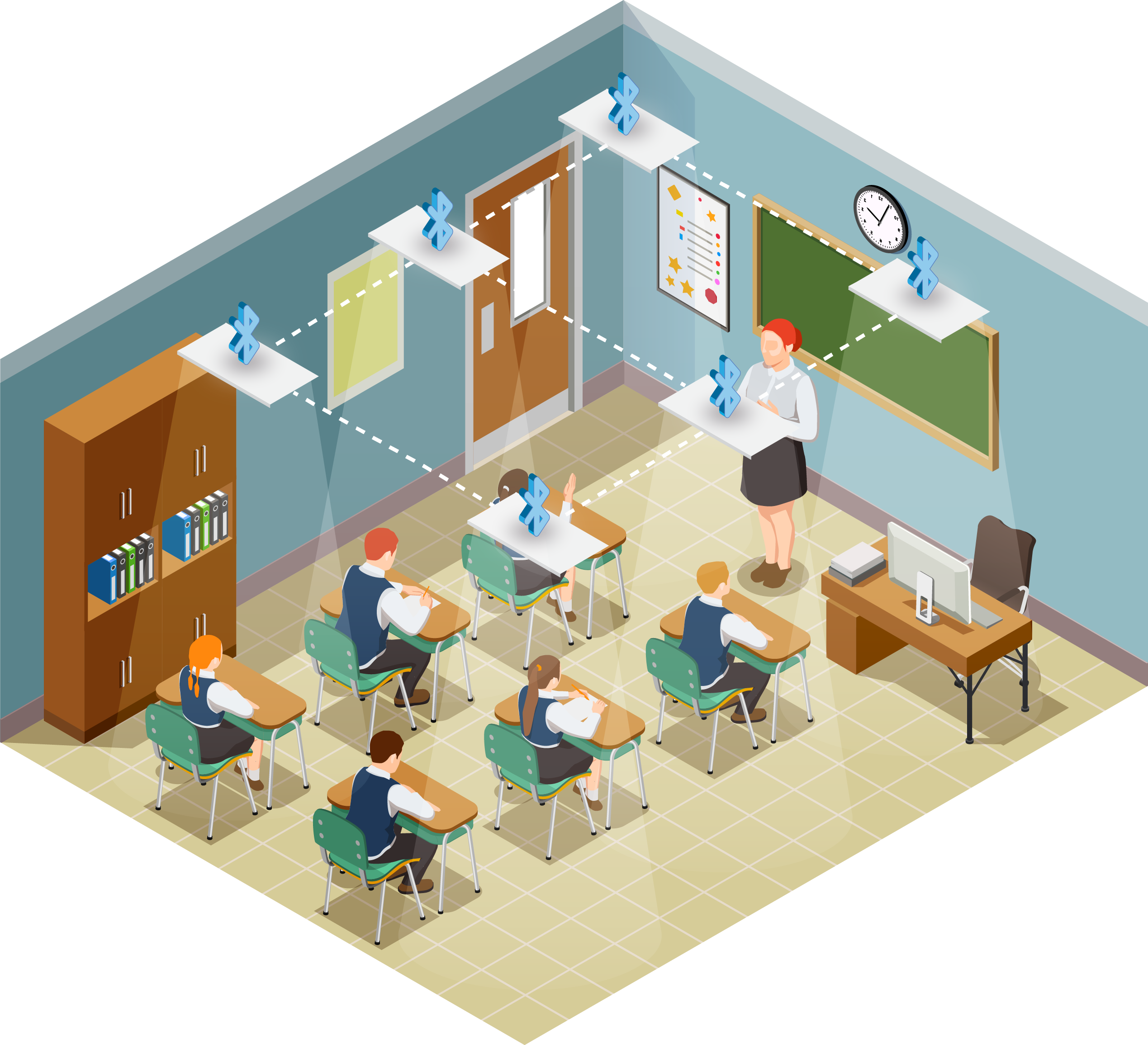

LED Lighting Controls Application Example Classroom


Lighting Control Strategies

Many projects incorporating LED lighting controls layer multiple strategies in the same space to satisfy energy codes and owner requirements. Each method is suited to addressing occupant comfort, visual needs, energy management, or all three. Here are a few specific examples of lighting control strategies that are frequently applied:

Occupancy and Vacancy Sensing

occupancy and vacancy sensing.png

These simple sensors ensure that lights only operate when occupants are in a room. In addition to basic occupancy sensing, ultrasonic sensors detect sound, and infrared sensors detect heat and motion. Easily added to individual luminaires or the room itself, occupancy sensors are ideal for areas not constantly used, like conference rooms, storage areas, or restrooms. It’s also applied to parking lot applications, wall packs, and stairwell luminaires.

Astronomical Time Clock Scheduling

Astronomical Time Clock Scheduling.png

This strategy provides pre-programmed changes to a light’s levels based on the date and the time of day. A time clock schedule is suited to larger spaces that are regularly occupied and spaces that are occasionally occupied but must have lights remain on for safety and security purposes.

High End Trim and
Task Tuning

High End Trim Tuning.png

This lighting control strategy sets the maximum light level based on mandated requirements for a particular room or zone. In addition, task tuning analyzes the light needs in each space and dims various areas based on condition.

Building Management Systems (BMS)

Building Management System.png

A Building Management System allows LED lighting to be integrated and controlled along with heating, ventilation, and HVAC systems through specific protocols.

Energy Monitoring Platforms

Energy Monitoring.png

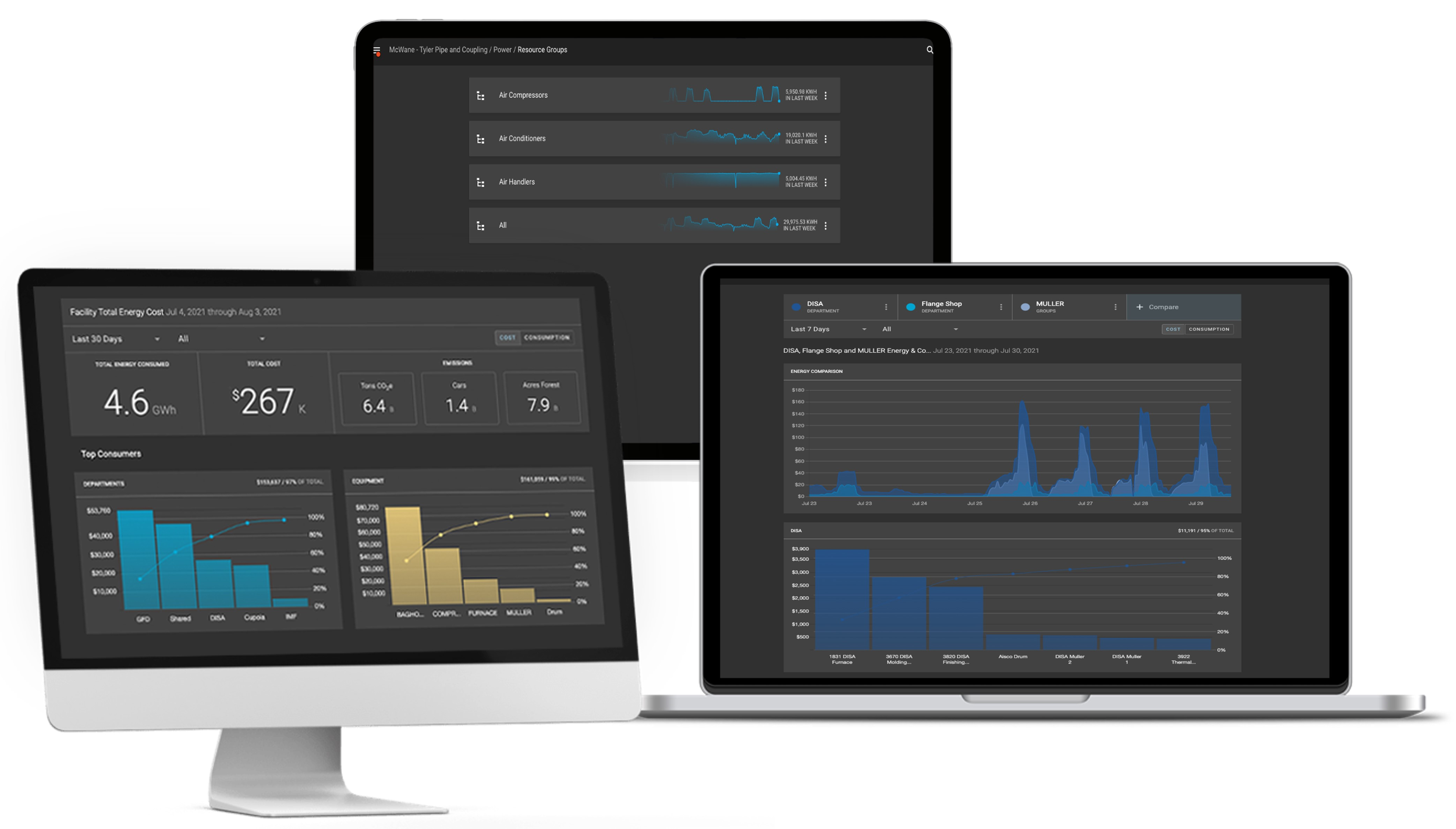

This platform helps identify energy usage in a building and helps drive conservation efforts for even more cost savings.

Daylight
Harvesting

daylight harvesting.png

Daylight harvesting controls automatically adjust lights based on the available daylight coming into the room. As the sun rises and sets, the electric lights change to maintain predetermined light levels for the space. Daylight harvesting is best suited for areas adjacent to windows, under skylights, or wherever outside light is consistent.

Demand Response Programs

Demand Response Programs.png

A demand response program automatically reduces lighting loads during peak electricity usage times or periods of high pricing. This program requires the ability to measure load at any point, accept a utility signal to start, stop, and measure a load shed event.

Personal Dimming Controls

Personal Dimming.png

Personal control gives occupants the ability to adjust the light output to their comfort level. Often found with dimming switches local to the room where the occupant is.

Networked Lighting Controls

Networked controls.png

Networked lighting controls (NLCs) bring together multiple LED luminaires and blend the different lighting control strategies based on the space requirements. By combining the LED lights, controls, connectivity, and data, these flexible systems can improve occupant comfort and space utilization. Networked lighting controls often include occupancy sensing, daylight harvesting, continuous dimming, and more.



Lighting Controls For Code Compliance

Lighting controls can assist commercial properties in meeting even the most stringent energy codes in the country. Why is energy code compliance substantial? Energy codes are minimum requirements for construction that focus on reducing overall energy consumption and reducing harmful effects on the environment. By incorporating lighting controls into the lighting design, not only do you meet the technical requirements defined by energy codes, but you deliver incentives back to the end-user while improving the quality of life. Here are some examples of codes, regulations, and designations that have become increasingly relevant across the United States:


Building Energy Efficiency Standards - California Title 24

California’s energy code reduces wasteful and unnecessary energy consumption in newly constructed (and existing) buildings. The California Energy Commission updates the Building Energy Efficiency Standards (Title 24, Parts 6 and 11) every three years.


International Energy Conservation Code (IECC)

Many state energy codes were based upon the IECC with amendments. The IECC addresses energy efficiency on several fronts, including cost, energy usage, use of natural resources, and the impact of energy usage on the environment.


State and Local Energy Codes

According to the U.S. Department of Energy, state and local energy codes represent a significant savings opportunity for property owners. For example, model energy codes for buildings are projected to save $138 billion in energy costs and avoid 900 MMT of avoided CO2 emissions cumulatively from 2010 to 2040. Noteworthy examples are California Title 24 and the New York City Energy Conservation Code (NYCECC).


DesignLights Consortium (DLC)

The DLC is a non-profit organization who promotes energy-efficient lighting and lighting controls in collaboration with utilities, manufacturers, lighting designers, federal, state, and local entities.

Do you need help adding lighting controls to your project?
We would love to help.

Lighting Controls Benefits

A well-designed lighting control system can improve the efficiency of buildings, deliver maximum energy savings, and provide long-term flexibility. Here are a few examples of benefits you could expect:

Long-Term Flexibility

Networked lighting control systems are adaptable for changes in the way spaces are used and can reduce costs associated with changing tenants. For example, lights can be re-zoned to a new layout, and settings can be adjusted to fit the new tenants.

Energy Cost Savings

LED lighting integrated with controls typically uses 25-75% less energy than non-controlled lights, thus reducing operating costs. A meta-analysis performed by Lawrence Berkeley National Laboratory (LBNL) reviewed 240 savings cases described in 88 papers and case studies and summarized the average savings achieved from all control types.

Lighting Controls Benefits

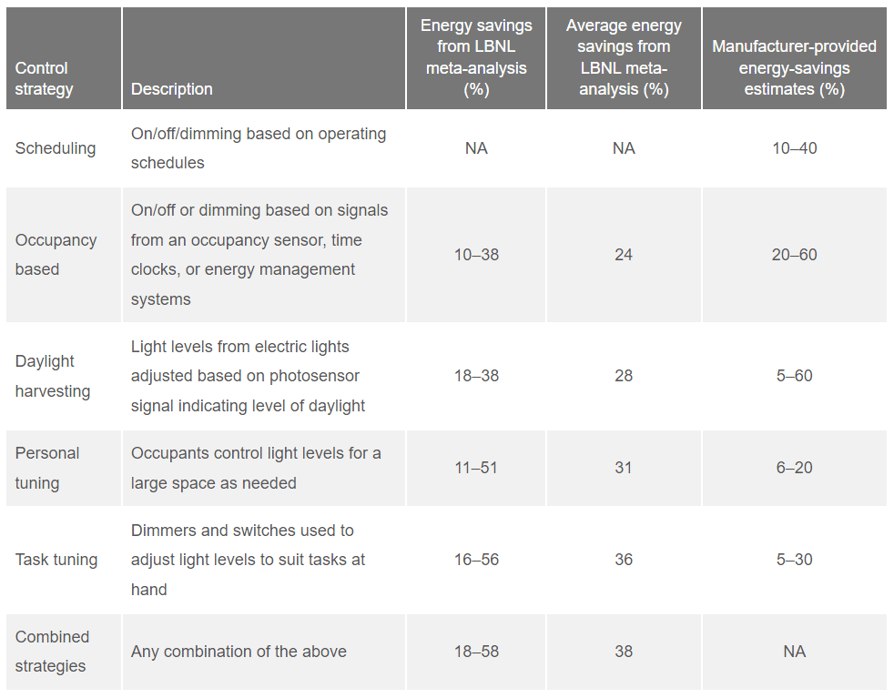

NA = not applicable; LBNL = Lawrence Berkeley National Laboratory. © E-Source; data from Lawrence Berkeley National Laboratory

Better Occupant Experience

Whether localized or controlled by the facility manager, lighting controls can create the right amount of light ideal for the space. That means occupants enjoy an efficient and productive environment that's focused on well-being.

Additional Benefits

Aside from cost savings, networked lighting controls enable additional benefits like asset tracking, space utilization, safety enhancements, and more data overall when connected to a building management system.



Explore All The Benefits of LED Lighting



US LED Lighting Controls Partners

US LED is proud to partner with the industry's most trusted lighting controls platforms to offer a complete portfolio of options that solve any lighting scenario. Because US LED lighting solutions are "controls agnostic," virtually any lighting control system can be specified at the time of order and integrated during assembly. US LED also creates lighting control layouts to accompany project submittals. For assistance with specifying lighting controls for your projects, click here.



Synapse Wireless is an Internet of Things (IoT) company focused on improving customers' operational, financial, and environmental performance. Additionally, they provide energy management solutions to help companies advance their growth and sustainability goals.

Synapse works with US LED to provide intuitive, wireless Internet of Things (IoT) controls for indoor and outdoor lighting solutions. In addition, their SimplySnap Energy Insights platform is an easy-to-use Energy Management System that can wireless connect thousands of lights, HVAC units, and compressors to form an intelligent system that's scalable and secure.

IoT Controls Available With US LED Lighting Solutions

TL7 Synapse Twist Lock Lighting Controller

The TL7 is an intelligent wireless twist lock lighting controller with exceptional fault tolerance and a multitude of features. Each provides intelligent On/Off switching, dimming, highly accurate power metering, digital sensor input, and status monitoring of lighting fixtures.

CBSSW-450-002 Synapse Central Base Station

This Central Base Station site controller serves as the heart of your SimplySnap solution. This network edge appliance provides quick browser-based access and local control of smaller systems with hundreds of devices.

DIM10-220-F Synapse Bolt-On Controller With Internal Antenna

The DIM10-220-F provides real-time control with power monitoring to help meet California Title 24 and other energy regulations. It also includes a 24VDC sensor input and power supply to connect a sensor into the SimplySnap wireless solution.

SS450-002 Synapse Site Controller

The site controller serves as the heart of your SimplySnap solution. This network edge appliance provides quick browser-based access and local control of smaller systems with hundreds of devices. WiFi-enabled with four antennas.

TL7 Synapse Twist Lock Lighting Controller
CBSSW-450-002 Synapse Central Base Station
CBSSW-450-002 Synapse Central Base Station
CBSSW-450-002 Synapse Central Base Station
CBSSW-450-002 Synapse Central Base Station

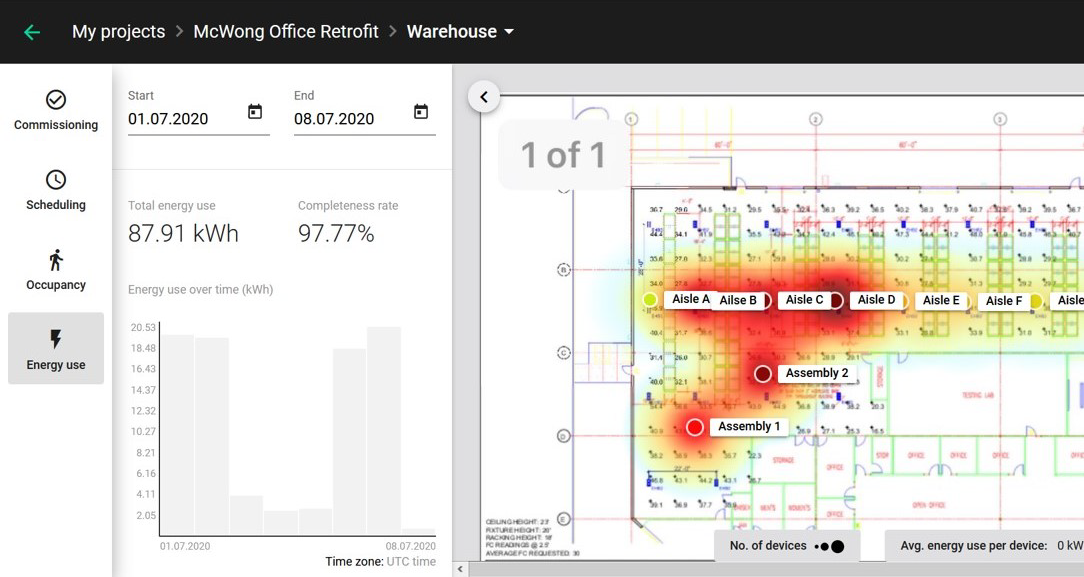

TruBlu web portal screen3.png

McWong has produced superior lighting controls and related electrical power and protection components. With advanced design and manufacturing facilities, McWong offers extensive component choices for OEMs and robust solutions for contractors, ESCOs, and facility managers.

McWong works with US LED to provide wireless indoor Bluetooth sensors and controls for its indoor lighting solutions. In addition, their TruBlu™ control platform uses Bluetooth 5 compatibility for robust networking capabilities combined with Bluetooth qualification for all devices for enhanced interoperability. The TruBlu™ web portal offers a user-friendly interface for project design, commissioning, and operation post-installation.

Indoor Wireless Bluetooth Controls Available With US LED Lighting Solutions

PSC-ND-I-CM-DC-BLE-SR McWong Wireless PIR Ceiling Mount Sensor

This ceiling mount sensor uses digital PIR Motion Detector Architecture and passive infrared (PIR) technology for improved detection coverage for ceiling mount applications up to 12 ft.

McWong Wireless PIR Ceiling Mount Sensor

PSC-WCM-450-BLE-SR McWong Wireless Line Voltage Fixture and Room Controller

The PSC-WCM-450-BLE-SR allows for 0-10V output to the LED driver and is made to fit into a Bluetooth mesh system. For input voltage of 100-277VAC, this unit is controlled wirelessly via Bluetooth Mesh, allowing for wireless dimming of LED lighting and seamless integration of software solutions. The small physical size allows this unit to be placed within the US LED product and comes with a threaded nipple for junction box mounting.

PSC-EO-WS-100-BLE and PSC-EO-WS-400-BLE McWong Wireless Self-Powered Bluetooth Wall Switches

These Bluetooth wall switches provide automatic lighting control for various indoor applications. These devices do not require wires or batteries since they come with a micro-generator-powered Bluetooth BLE transmitter to send a wireless signal.

PSC-DM-WS-400-BLE-SR McWong Wireless Four-Button Dimmer Wall Switch (Scene Control)

The Bluetooth mesh dimmer wall switch provides automatic lighting control with buttons customized in the field for a specific environment. They can replace any standard single-pole wall switch. The four-button model is for On/Off, dimming, scenes, and tunable white controls.

PSC-DM-I-WS-100-BLE-SR McWong Bluetooth Motion Sensor Dimmer Wall Switch

The Bluetooth mesh wall switch provides automatic lighting control for indoor applications needing PIR detection. PIR detection is best suited for areas with a clear line of sight and good air circulation. Typical applications include classrooms, copy rooms, offices, conference rooms, and restrooms.

McWong Wireless Line Voltage Fixture and Room Controller
McWong Wireless Self-Powered Bluetooth Wall Switches

McWong TrubBlu™ Smart Lighting Control Platform

McWong’s TruBlu is a comprehensive and flexible SIG-qualified Bluetooth Mesh lighting control solution of intelligent hardware devices and Silvair-powered software tools. The control infrastructure is future-friendly for scaling beyond lighting to enable value-added IoT services:

  • Code-compliant occupancy detection

  • Sensor-based automation

  • Customizable daylight harvesting scenarios

  • Advanced lighting control scenarios for large-scale installations

  • Interoperable with Bluetooth Mesh qualified lighting devices

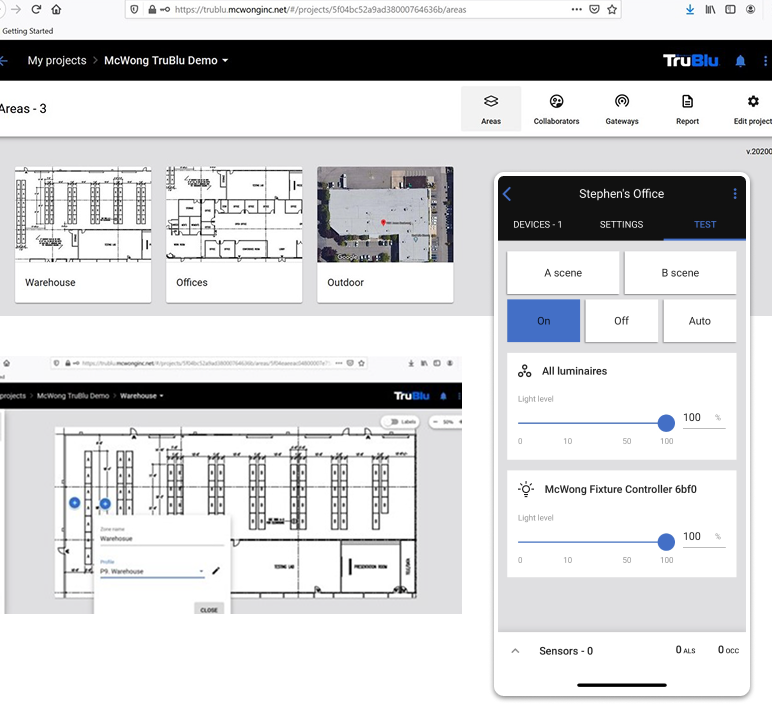

TruBlu web portal screen
Smart Lighting Control Platform
McWong TruBlu web portal screen



For over 100 years, Leviton has been a smart choice of industry professionals for the most comprehensive selection of wiring devices for commercial, industrial, and OEM applications. In addition, they deliver specification-ready lighting controls for commercial and industrial building applications. Leviton dedicates itself to developing long-lasting relationships with decades of electrical experience, superior customer service, and a solid commitment to quality.

Leviton works with US LED to provide indoor wired sensors and controls for its indoor lighting solutions. These code-compliant devices help create more efficient spaces that enhance the work environment while positively impacting well-being and productivity.

Indoor Wired Controls Available With US LED Lighting Solutions

ODC15-IDW Leviton Provolt Series Passive Infrared (PIR) Occupancy Sensor

The Leviton Provolt™ Series combines line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. The uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor.

ODC20-MDW Leviton Provolt Series Multi-Technology (M/T) Occupancy Sensor

Provolt Series Multi-Technology Sensors combine both PIR and U/S technology for unrivaled performance and reliability. The sensors use PIR technology to initially turn lights ON, and use U/S technology to keep the lights ON. Exclusive false-detection software assures lights are ON only when needed. Auto-adapting: time delay and sensitivity are continually adjusted to occupancy pattern of use.

5601-2W Leviton Decora Rocker Single-Pole AC Quiet Switch

15 Amp, 120/277 Volt, Decora Rocker AC Quiet Switch

  • CONVENIENT - Switch controls load from a single location

  • DURABLE - Impact-resistant thermoplastic nylon construction

  • EASY - Quick wire push-in and side wiring for easy installation

  • COMPATIBLE - For use with Leviton Decora wall plates

IP710-LFZ Leviton IllumaTech Wall Control Slide Dimmer

IllumaTech Preset Dimmers feature a low-profile fluid slide bar movement for fine adjustment of light levels or fan speeds that’s accompanied by an easy-to-use ON/OFF preset switch. The switch provides quick ON/OFF control without disturbing your favorite pre-selected settings. Most feature a built-in LED locater light.

ODD10-IDW Leviton Smart PIR 0-10V Dimming Wallbox Sensor

The Leviton Smart Dimming Wallbox Sensor is designed for use with 0-10V ballasts and uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. A specialized lens divides the field-of-view into sensor zones. When a person passes in or out of a sensor zone the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant moves through the sensor zones and after the timeout expires.

Leviton Provolt Series Passive Infrared (PIR) Occupancy Sensor

Since its founding in 1978, Payne-Sparkman Manufacturing has pioneered lighting control and network technologies for commercial markets. They continue to lead the industry with wireless controls for sports lighting applications, which gives users truly “intelligent” systems that provide dynamic effects and insightful data monitoring.

Payne-Sparkman works with US LED to provide wireless comprehensive control capabilities for its Atleta LED sports lighting solutions with fewer points than comparable systems. These products help create a mesh network that can automate the lighting, log burn hours, increase productivity, and save on energy costs.

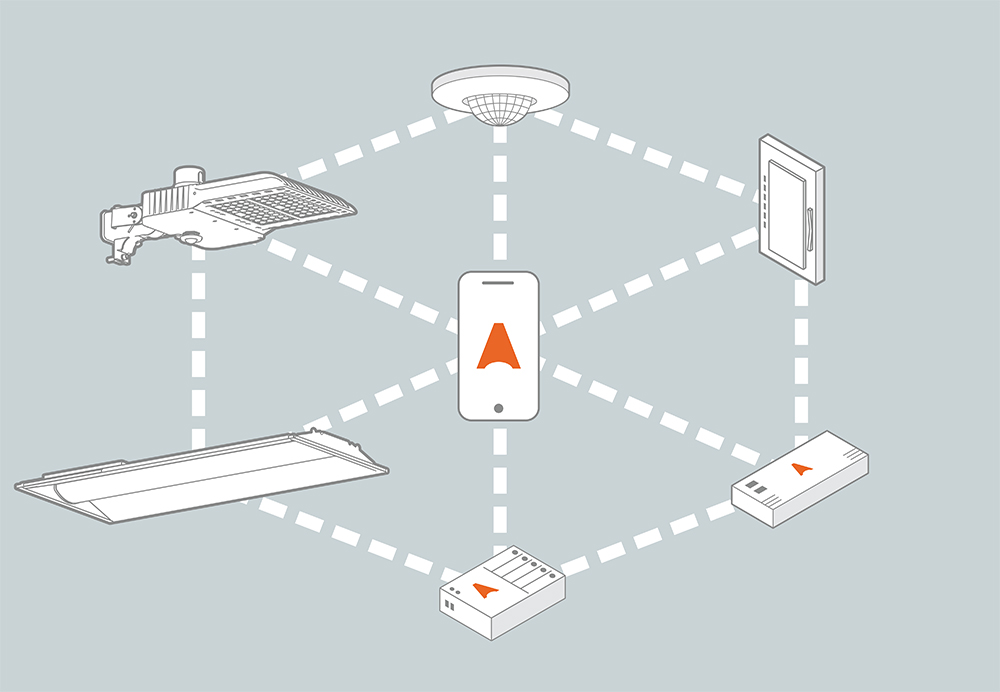

Smart Blu 2.0 is a wireless lighting control system that utilizes Bluetooth Mesh Network technology to transmit lighting control data from a smartphone to lights and switches. Perfect for schools and office buildings, Smart Blu is simple to set up for managing energy consumption without disrupting occupants or requiring intervention from building management.

US LED Lighting products installed with Smart Blu 2.0 are embedded with advanced lighting controls that optimize energy efficiency and occupant well-being. These lighting controls include motion detection, tunable white, daylight harvesting, circadian rhythm control, and much more.



Lighting Controls Resource Links


U.S. Department of Energy – Lighting Controls

https://www.energy.gov/energysaver/save-electricity-and-fuel/lighting-choices-save-you-money/lighting-controls





U.S. Department of Energy – Building Energy Codes Program

https://www.energycodes.gov/





Lighting Controls Association

http://lightingcontrolsassociation.org/resources/





California Title 24 Building Energy Efficiency Program

https://www.energy.ca.gov/title24/





U.S. Green Building Council – LEED Certification

https://new.usgbc.org/





Building Codes Assistance Project

http://bcapcodes.org/





ASHRAE – Technical Resources

https://www.ashrae.org/technical-resources





IECC - Overview

https://www.iccsafe.org/codes-tech-support/codes/2018-i-codes/iecc/


Let's start a conversation about lighting controls for your project.

Implementing smart controls with your lighting project has never been easier! US LED and its lighting control partners are ready to assist if you're ready to optimize energy efficiency and occupant well-being. Please fill out the form with your information, and our team will follow up with recommendations, layouts, pricing, and more.
