LED Lighting Layout and Design Services

Great lighting on any scale starts with a great plan. US LED lighting layout services will help you plan out new or replacement lighting in offices, warehouses, retail stores, parking garages, and many more before you install. Deciding to use our industry-leading LED lights, many of which feature a 200,000-hour L70 rating and a Ten-Year Warranty,is only the first part of the plan. You will also need to figure out what types of lights to use, where to place them, and how to power them. Our lighting experts can assist you with a complimentary photometric layout that will help your project look amazing for decades to come.

Lighting Layout Design Company

What are Photometric Studies?

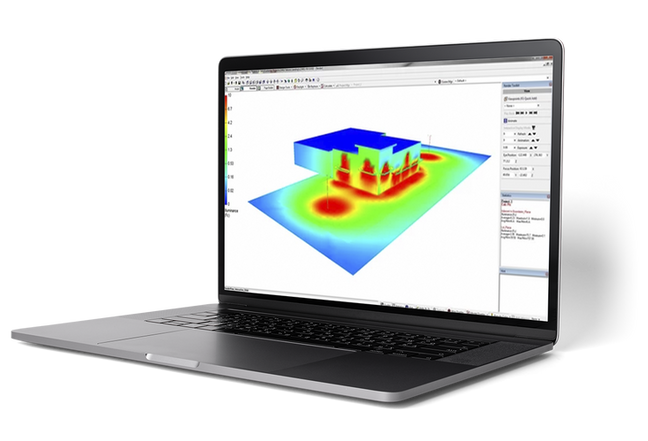

The science of photometry has been adopted by the lighting industry in recent years to make commercial lighting more effective and efficient. In simple terms, photometry is the study of light itself. Photometric studies were established in the early 1990s to keep up with advancing technologies and utilize computer simulations to evaluate an area before actual construction begins. Project information like property size, potential obstacles, and footcandle requirements are taken into account by the photometric software. By looking at how light leaves a fixture and how it affects the surrounding area, one can conclude the best options for total output, brightness, intensity, and uniformity.

A photometric analysis can be used with all types of lighting to visualize a design in advance so that one can be confident in the lighting setup. Simulating a lighting design allows you to see if a plan will work and make changes before installation starts. The benefits go beyond just seeing what types of fixtures to use and how many lumens are coming from them. It also means someone can estimate every cost associated with the electrical requirements of a project and budget accordingly. Eliminating the guesswork from a project saves time, money, and potential headaches from unpredictable changes. Furthermore, one can make sure that the project plan meets all required local and state codes associated with commercial properties.

What's Typically Included?

From simple layouts to more complex projects, US LED lighting services can generate a comprehensive photometric study that includes:

  • 2D/3D luminaire placement with specified mounting positioning in an application

  • Point-by-point footcandle calculations to identify how much light is hitting a target surface

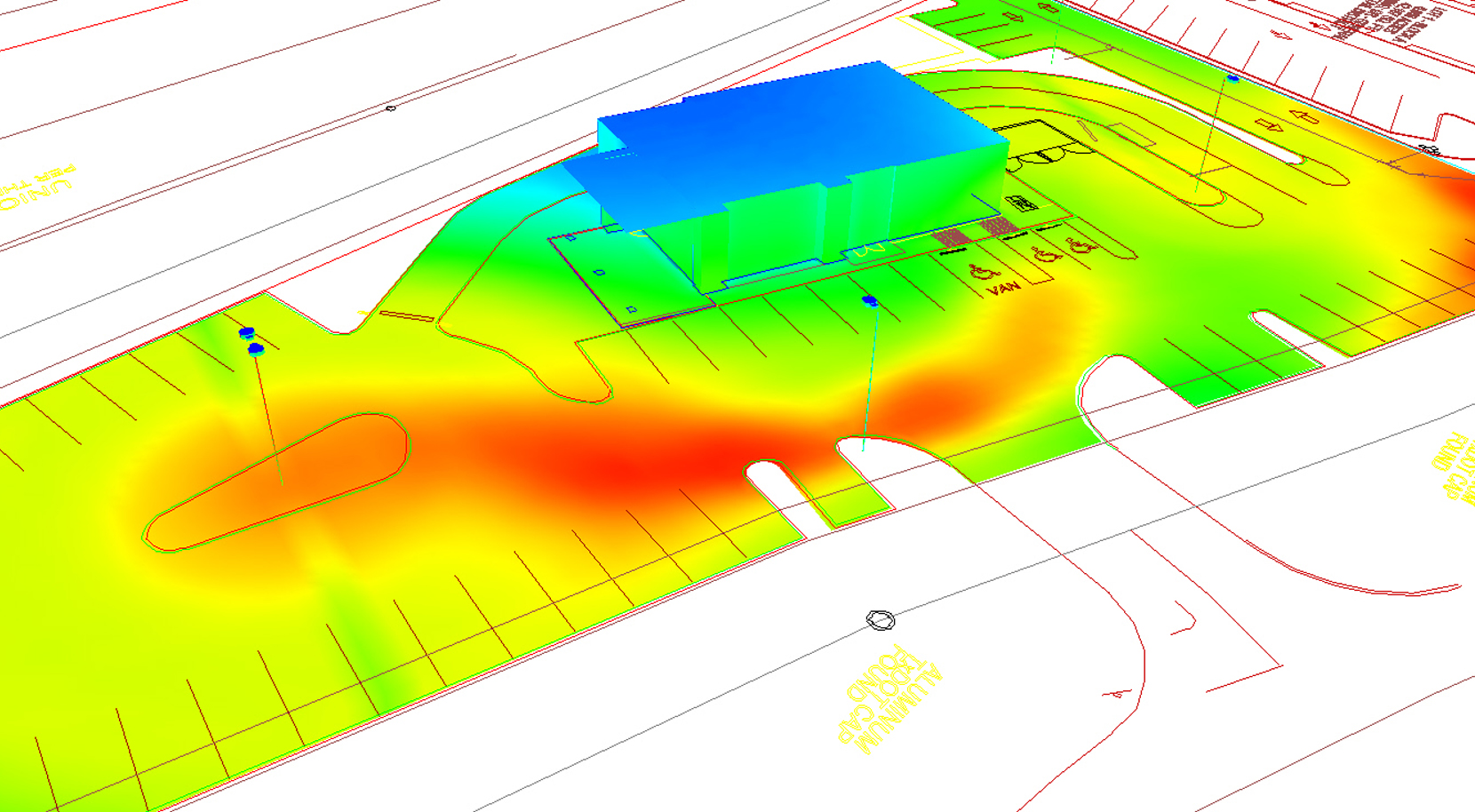

  • "Heatmap" model to visualize how the light is being dispersed

  • Complete luminaire schedule outlining product details along side the mounting positioning

The Value of Good Lighting Design

Every space has its own unique lighting needs. Whether it is the need to account for daylight harvesting, high ceilings, or employee productivity - choosing the right lighting is imperative for a functional environment. This is true whether you are building a new space, remodeling an existing space, or just retrofitting existing lamps with LED technology. US LED has a complete portfolio of interior, exterior, and sign lighting products. When our lighting experts create a photometric layout for your project, we can confidently tell you what lights the best and what is efficient. We will also be able to communicate the demands it will place on your electrical system so you know if additional electrical work is needed. These lighting layouts help installers because they will know exactly what to set up before they even arrive on the job site.

Explore All The Benefits of LED Lighting

Perfectly Precise LED Lighting Solutions

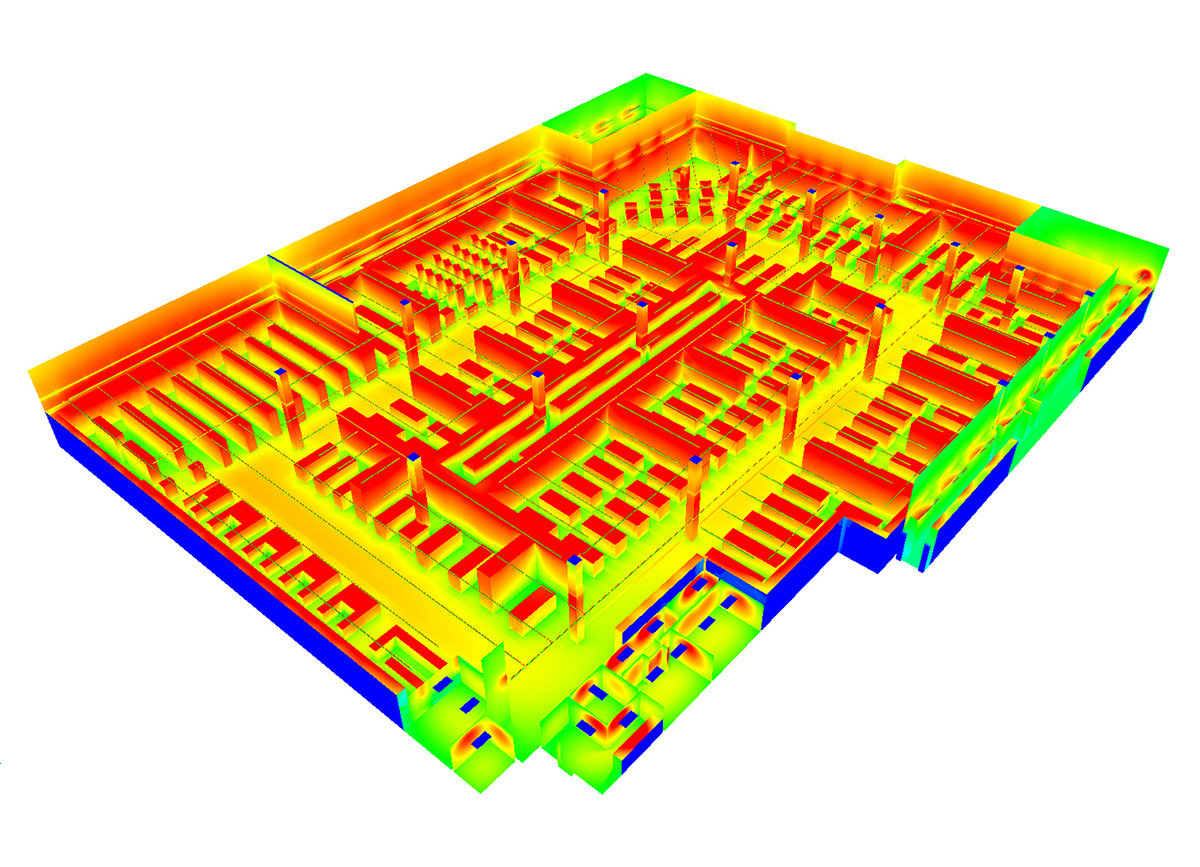

US LED uses photometric analysis to simulate every aspect of your project - area size and shape, items on display, the local environment, and much more. Using this information, we can recommend which type of luminaires you need, how many you need, and where to place them. Lighting specialists are able to input poles, luminaires, buildings, trees, cars, and other items that may impact the direction of the light or the illumination of the property. For signage lighting, we use CAD software to bring our modules down to scale so you know what products and drivers to purchase. Our lighting experts will also create designs that adhere to your local and state codes, focusing on factors like light levels, light spill, and light trespass.

Fast Service From Lighting Experts

By providing as many details as possible upfront about your projects, like dimensions, desired light levels, mounting height, and existing fixtures, our experts will able to complete a comprehensive photometric layout that best compliments your project requirements. What exactly are we looking for to give you the best information possible? Here are some common questions that our experts will ask:

  • What type of application is it?

  • Are drawings of the application readily available for reference?

  • What can the luminaires be mounted to?

  • Are we matching an existing lighting footprint or is it a brand new design?

  • What are the targeted areas to be illuminated?

  • Aside from standard IES footcandle requirements, is there a desired illuminance target?

We will quickly turn around a lighting layout to you with a virtual model that proposes the design, luminaire characteristics, light levels, and other obscure effects that would impact the completed installation. With the right lighting design, you will positively enhance visibility, improve safety, and increase employee productivity.

Photometric reports generated by US LED use methods recommended by the Illuminating Engineering Society of North America (IESNA). Calculations used to prepare reports will be based on data provided by a third party. The accuracy of your photometric report is dependent on the accuracy of the initial data provided. End-user environment and application (including, but not limited to voltage, variation, and dirt accumulation) can cause actual photometric performance to differ from photometric calculations. The report will be provided without warranty as to accuracy, completeness, reliability, or otherwise. In no event will US LED be responsible for any loss resulting from any use of this report.
