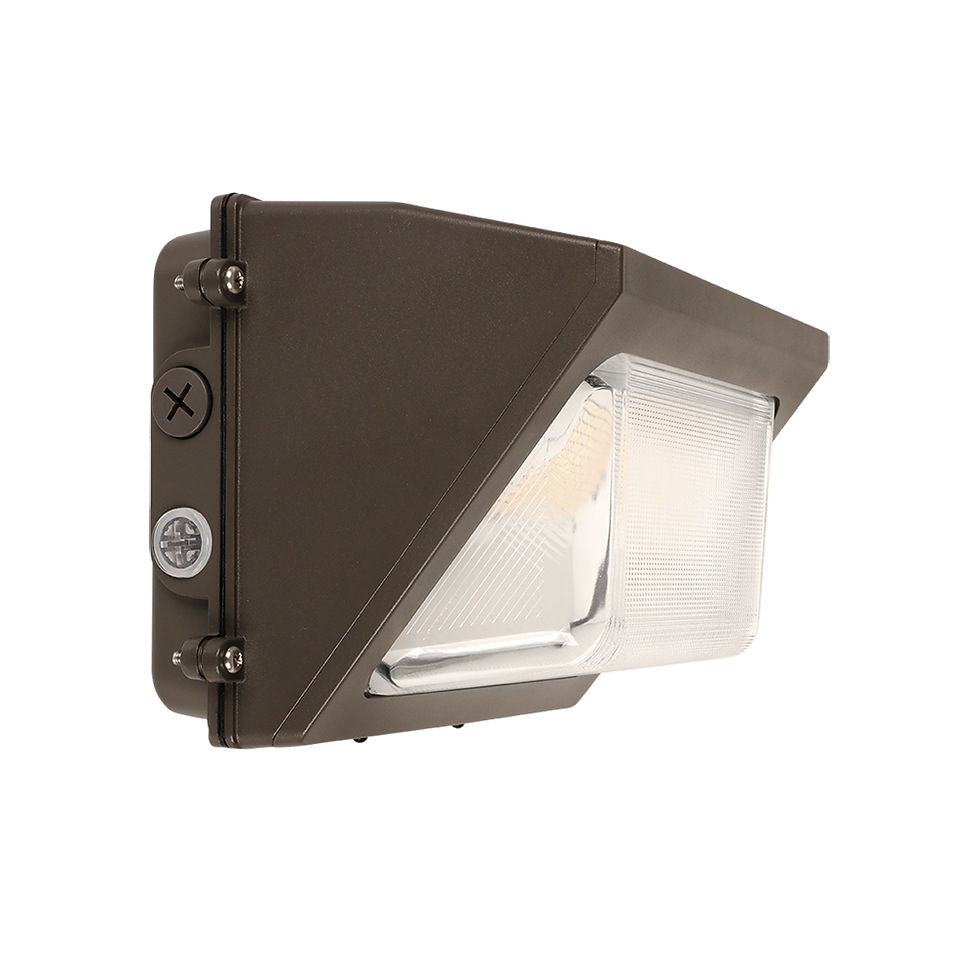

QubePAK 4 Compact
LED Wall Pack - Small
Introducing the QubePAK®4 Compact (ULWL2), US LED’s latest advancement in wall pack lighting—now in a more compact design. Engineered to outperform and outlast traditional HID wall packs, the QubePAK®4 delivers exceptional energy efficiency and durability. Built with a robust housing and classic aesthetics, it stands resilient against the elements, ensuring exceptional performance for 167,000 hours (L70). Ideal for both new construction and retrofit projects, this streamlined version offers outstanding illumination in a popular, space-saving classic design.
Product Details
Key Features
Low-wattage, highly-efficient patented LED replacement for legacy HID wall packs.
Traditional aesthetics offer a familiar commercial look for any outdoor application.
Smaller, robust die-cast housing is IP65-rated to protect integral components from harsh environments.
Construction
Two-piece die-cast aluminum housing optimizes thermal management.
Housing is protected by a RoHS compliant, corrosion resistant powder coat finish.
Standard architectural bronze finish.
High-impact, heat-resistant borosilicate glass lens is hinged and won’t degrade.
Dimensions: 10.8 in. x 7.3 in. x 9.3 in.
Net Weight: 6.00 lbs.
Electrical
120-277V 50/60Hz driver.
0-10V dimming standard.
System power factor >90% and THD <20%.
Operating temperature: -40°C to 45°C (-40°F to 113°F).
Optics
Industry-leading LEDs with 5000K CCT (minimum 70 CRI).
IES Type IV distribution.
Lumen Maintenance: ≥167,000 hours (L70).
Mounting
Designed for wall mounting above four feet from the ground.
Housing is configured for mounting directly over a standard 4” outlet box (by others) or surface wiring via any of the convenient 1/2” threaded conduit entries.
Warranty
Backed by US LED’s industry-leading Ten-Year Warranty.
Stocked Configurations
ULWL2 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
