Apex Select
LED Recessed Downlight with Selectable CCT & Wattage
The Apex Select (ASD1) is an all-in-one LED downlight solution that delivers both value and performance for retrofits and new construction. It comes standard with selectable wattage and CCT allowing for in-the-field customization. It offers your choice of round or square trim options for a unique look. The Apex Select is an ideal LED lighting solution for restaurants, retail, healthcare, educational facilities, and other commercial applications.
Product Details
Key Features
Versatile LED downlight engineered for both new construction and retrofit projects.
Selectable switch for wattage and CCT.
Diffused lens helps to provide comfortable, uniform light distribution.
Suitable for use in damp locations.
Construction
Die-cast aluminum and polycarbonate housing offers ideal thermal management.

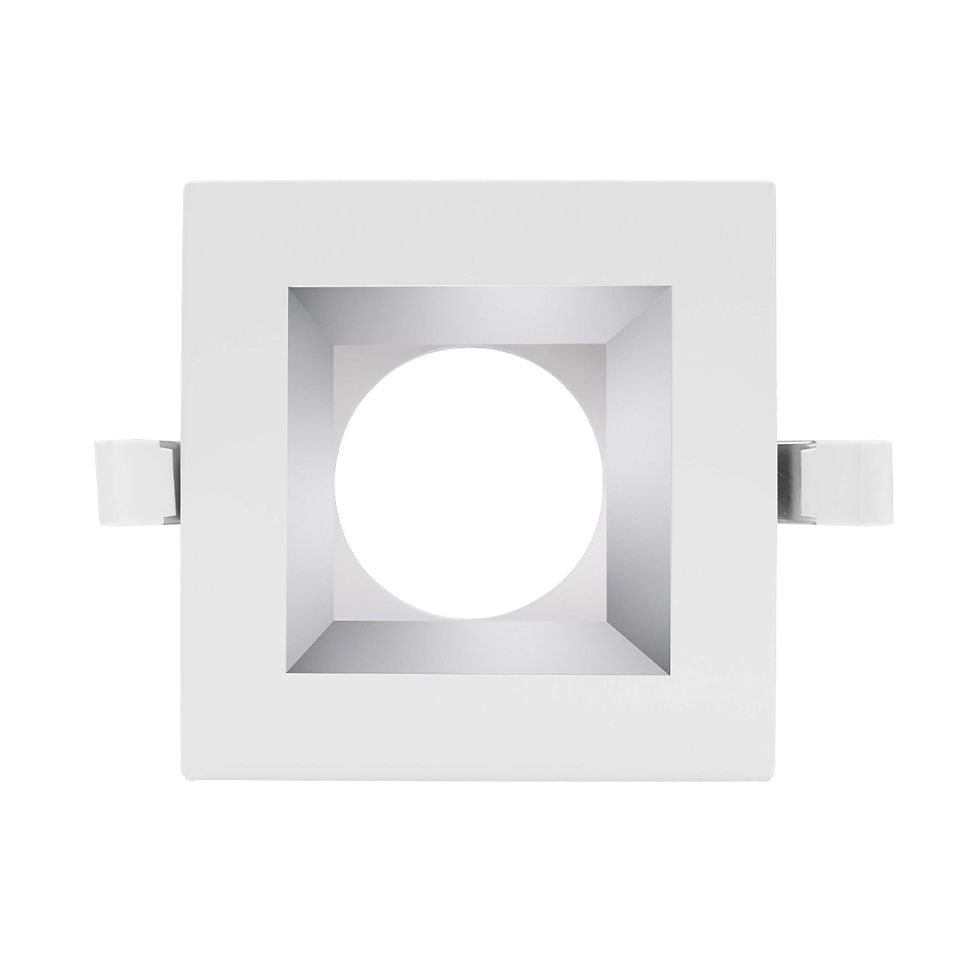

Choice of round or square trim options in a white matte finish.
Frosted plastic lens reduces glare.
Electrical
120-347VAC 50/60Hz input.
0-10V dimming standard.
Power factor: >0.9 and THD <20%.
Operating temperature: -30°C to 40°C (-22°F to 104°F).
Optics
Industry-leading LEDs with selectable CCT via switch in the field: 3000K, 3500K, and 4000K CCT (minimum 80 CRI).
65° Beam Angle
Lumen Maintenance: ≥50,000 hours (L70).
Mounting
Mounts directly recessed into the ceiling with integrated spring action clips.
Warranty
Backed by US LED’s industry-leading Ten-Year Warranty.
Stocked Configurations
ASD1 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
